2WD MinivansEPA Classification:

20.0Fuel Tank Capacity, Approx (gal):

10.3Total Cooling System Capacity (qts):

4510Base Curb Weight (lbs):

4 (2011)EPA Greenhouse Gas Score:

9.3 (2011)Tons/yr of CO2 Emissions @ 15K mi/year:

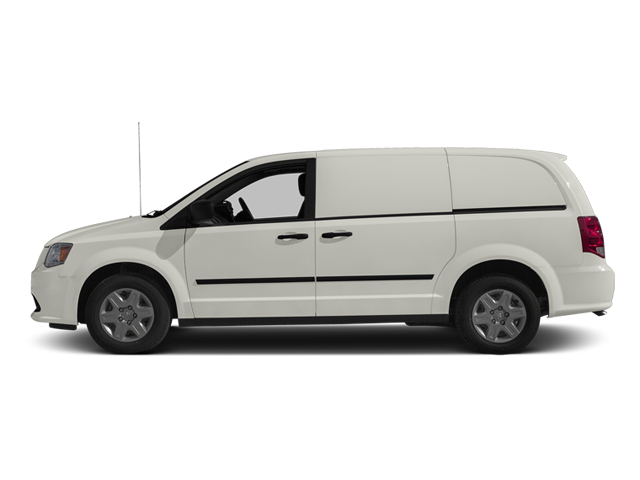

Ram Cargo VanVehicle Name:

Cargo VanBody Style:

700Cold Cranking Amps @ 0° F (Primary):

160Maximum Alternator Capacity (amps):

20 (2011)Fuel Economy Est-Combined (N/A):

17 (2011)EPA Fuel Economy Est - City (MPG):

25 (2011)EPA Fuel Economy Est - Hwy (MPG):

3600Dead Weight Hitch - Max Trailer Wt. (lbs):

360Dead Weight Hitch - Max Tongue Wt. (lbs):

3600Wt Distributing Hitch - Max Trailer Wt. (lbs):

540Wt Distributing Hitch - Max Tongue Wt. (lbs):

Pwr Rack & PinionSteering Type:

14.3Steering Ratio (:1), Overall:

2.9Lock to Lock Turns (Steering):

39.1Turning Diameter - Curb to Curb (ft):

- TBD -Turning Diameter - Wall to Wall (ft):

- TBD -Cargo Area Length @ Floor to Seat 1 (in):

- TBD -Cargo Area Width @ Beltline (in):

49.0Cargo Box Width @ Wheelhousings (in):

46.2Cargo Box (Area) Height (in):

143.8Cargo Volume to Seat 1 (ft³):

MacPherson StrutSuspension Type - Front:

Twist BeamSuspension Type - Rear:

w/Coil SpringsSuspension Type - Front (Cont.):

w/Coil SpringsSuspension Type - Rear (Cont.):

- TBD -Shock Absorber Diameter - Front (mm):

- TBD -Shock Absorber Diameter - Rear (mm):

TUHFront Tire Order Code:

TUHRear Tire Order Code:

TBKSpare Tire Order Code:

P225/65R16Front Tire Size:

P225/65R16Rear Tire Size:

CompactSpare Tire Size:

16 x 6.5Front Wheel Size (in):

16 x 6.5Rear Wheel Size (in):

CompactSpare Wheel Size (in):

SteelFront Wheel Material:

SteelRear Wheel Material:

SteelSpare Wheel Material:

ERBEngine Order Code:

V-6 Cyl 3.6LEngine Type:

3.6L/220Displacement:

Electronic Fuel InjectionFuel System:

283 @ 6400SAE Net Horsepower @ RPM:

260 @ 4400SAE Net Torque @ RPM:

PwrBrake Type:

4-WheelBrake ABS System:

YesDisc - Front (Yes or ):

YesDisc - Rear (Yes or ):

11.9 x 1.1Front Brake Rotor Diam x Thickness (in):

12.0 x 0.5Rear Brake Rotor Diam x Thickness (in):

2Passenger Capacity:

52.0Passenger Volume (ft³):

39.8Front Head Room (in):

40.7Front Leg Room (in):

63.7Front Shoulder Room (in):

58.4Front Hip Room (in):

121.2Wheelbase (in):

202.8Length, Overall (in):

78.7Width, Max w/o mirrors (in):

67.9Height, Overall (in):

65.6Track Width, Front (in):

64.8Track Width, Rear (in):

5.6Min Ground Clearance (in):

- TBD -Rear Door Opening Height (in):

- TBD -Rear Door Opening Width (in):

24.4Liftover Height (in):

FWDDrivetrain:

DG2Trans Order Code:

6Trans Type:

Multi-speed AutomaticTrans Description Cont.:

4.12First Gear Ratio (:1):

2.84Second Gear Ratio (:1):

2.28Third Gear Ratio (:1):

1.45 up/1.57 downFourth Gear Ratio (:1):

1.00Fifth Gear Ratio (:1):

0.69Sixth Gear Ratio (:1):

3.21Reverse Ratio (:1):

3.16Final Drive Axle Ratio (:1):

3.6L VVT V6 FLEX FUEL ENGINE (STD) ERB:

29C CUSTOMER PREFERRED ORDER SELECTION PKG -inc: 3.6L V6 engine, 6-speed auto trans 29C:

50-STATE EMISSIONS NAS:

6-SPEED AUTOMATIC TRANSMISSION (STD) DG2:

225/65R16 ALL-SEASON TIRES (STD) TUH:

STANDARD PAINT -PAINT:

BLACK/LIGHT GRAYSTONE INTERIOR, CLOTH LOW-BACK BUCKET SEATS H7X1:

BLACK SEATS CEQ:

LIGHT GRAYSTONE SEATS CEP:

NATIONAL DELIVERY -NREG:

HAWAII DELIVERY -inc: destination charge adjustment -HI:

BRIGHT SILVER METALLIC PS2:

BRILLIANT BLACK CRYSTAL PEARL PXR:

STONE WHITE PW1:

TRUE BLUE PEARL PBU:

PWR WINDOW GROUP -inc: pwr windows w/driver & passenger express up/down, second row pwr windows, pwr quarter vented windows (REQ: GC4 Sunscreen Glass Inserts) (N/A w/CJ8 Side Curtain Air Bag Delete) AWH:

SMOKER'S GROUP -inc: cigar lighter, front & rear ashtrays AWS:

ENGINE BLOCK HEATER NHK:

TRAILER TOW GROUP -inc: class II receiver hitch, trailer tow wiring harness AHT:

PROTECTIVE COATING & REMOVER *No Longer Factory Orderable, See Dealer for Current Availability* XPF:

LIFTGATE SUNSCREEN GLASS -inc: rear window defroster, rear window wiper/washer GC2:

REAR DOORS & LIFTGATE SUNSCREEN GLASS -inc: left/right sliding doors, rear window defroster, rear window wiper/washer (N/A w/AWH Pwr Window Group) GC3:

SUNSCREEN GLASS FOR REAR DOORS, REAR QUARTER, LIFTGATE -inc: rear window defroster, rear window wiper/washer GC4:

MEDIA CENTER 430N -inc: AM/FM stereo w/CD/DVD/MP3 player, 40GB hard drive w/28GB available, 6.5" touch screen, Garmin navigation, SiriusXM travel link w/1-year subscription, SIRIUS satellite radio w/1-year subscription, audio input for mobile devices, ParkView rear back-up camera RHB:

MEDIA CENTER 730N -inc: AM/FM stereo w/CD/DVD/MP3 player, (6) speakers, 40GB hard drive w/20GB available, 6.5" touch screen, GPS navigation, SIRIUS satellite radio w/1-year subscription, SiriusXM traffic w/1-year service, SiriusXM travel link w/1-year service, UConnect hands-free communication w/voice command, auto-dimming rearview mirror w/microphone, remote USB port, audio jack input for mobile devices, Bluetooth streaming audio, ParkView back-up camera RHR:

RADIO DELETE -inc: (6) speakers *CREDIT* RA8:

UCONNECT HANDS-FREE GROUP -inc: Bluetooth streaming audio, SIRIUS satellite radio w/1-year subscription, leather-wrapped shift knob & steering wheel, remote USB port, auto-dimming rear view mirror w/microphone, steering wheel audio controls, UConnect voice command w/Bluetooth AAJ:

MOPAR UCONNECT WEB XG5:

SIRIUS SATELLITE RADIO -inc: 1-year subscription *N/A in HI or PR* RSC:

PWR 8-WAY DRIVER SEAT -inc: pwr 2-way driver lumbar JPR:

DELUXE LOAD FLOOR *Late Availability* CXU:

LOAD FLOOR DELETE CMJ:

SECURITY ALARM LSA:

FULL WIDTH CARGO DIVIDER (REQ: CJ8 Side Curtain Air Bags Delete) (N/A w/CMJ Load Floor Delete) CWC:

INTERIOR DELETE GROUP *Deletes STD rear quarter trim, C-pillar trim, D-pillar trim, rear silencers, pwr outlet in rear quarter trim but retains front pwr outlets* *CREDIT* AS8:

MOPAR MOLDED WALL LINER (REQ: AS8 Interior Delete Group & CJ8 Side Curtain Air Bags Delete) (N/A w/AWH Pwr Window Group, CMJ Load Floor Delete) *No Longer Factory Orderable, See Dealer for Current Availability* CMF:

MOPAR LIFTGATE SECURITY GRID (REQ: CJ8 Side Curtain Air Bags Delete & GC4 Sunscreen Glass Inserts) XGC:

CARGO COMPARTMENT FLOOR MAT (N/A w/CMJ Load Floor Delete or CXU Deluxe Load Floor) CKL:

SIDE CURTAIN AIR BAGS DELETE (N/A w/AWH Pwr Window Group) *Please order if racks, bins, shelves or partitions are to be installed* *CREDIT* CJ8:

Fixed long mast antenna

Dual note horn

Tire pressure monitoring warning lamp

Child seat anchor system-LATCH ready

Front seat side air bags

Driver knee-bolster air bag

Driver & front passenger advanced multistage air bags

Electronic stability control

Black door handles

Rear wiper w/washer

Variable intermittent windshield wipers

Solid inserts for rear doors, rear quarter, liftgate

Right sliding door w/no glass

Left sliding door w/no glass

Fold away pwr heated mirrors

Headlamp time off delay

Halogen quad headlamps

Black grille

Belt moldings

Body color fascia

Accent bodyside molding

Tire carrier winch

Pwr locks

Sliding door alert warning

Outside temp display

120-MPH primary speedometer

Tilt/telescopic steering column

Luxury steering wheel

Black sill applique

Flat load floor

Front rubber floor covering

Rear seat delete

Active head restraints

Left rear quarter trim storage bin

Rear seatback grocery bag hooks

Interior observation mirror

Liftgate flood lamp

Rear dome lamp

Front courtesy/map lamps

Dual sunvisors w/mirrors

Assist handles -inc: (1) front passenger, (2) second row overhead, (2) second row B-pillars

Overhead console

12V aux pwr outlet

Front/rear 12V DC pwr outlets

Lower instrument panel storage bin

Dual glove boxes

Air filter

Air conditioning w/dual-zone temp control

Speed control

Keyless entry w/immobilizer
